*Features*:

*Safer With 7In TFT Screen*:Comes with 7in TFT color display; 800x480 resolution and NTSC/PAL video system; this camera monitor can automatically display rear view image; efficiently prevent accident to avoid children; pedestrians and pets while reversing or parking space. 110° Wide viewing angle; can effectively eliminate blind spots and capture what’s going on accurately.
*Wireless & Remote Control*:Come with wireless monitor and reverse camera; just connect the power then choose V2 and the according frequency "2307" to finish wireless connection between monitor and camera. No other messy cables needed; more convenient and simple. Besides; antenna can be added to enhance signal. With a remote controller; easy to turn on/off the monitor and set different modes with no use reaching for the monitor.

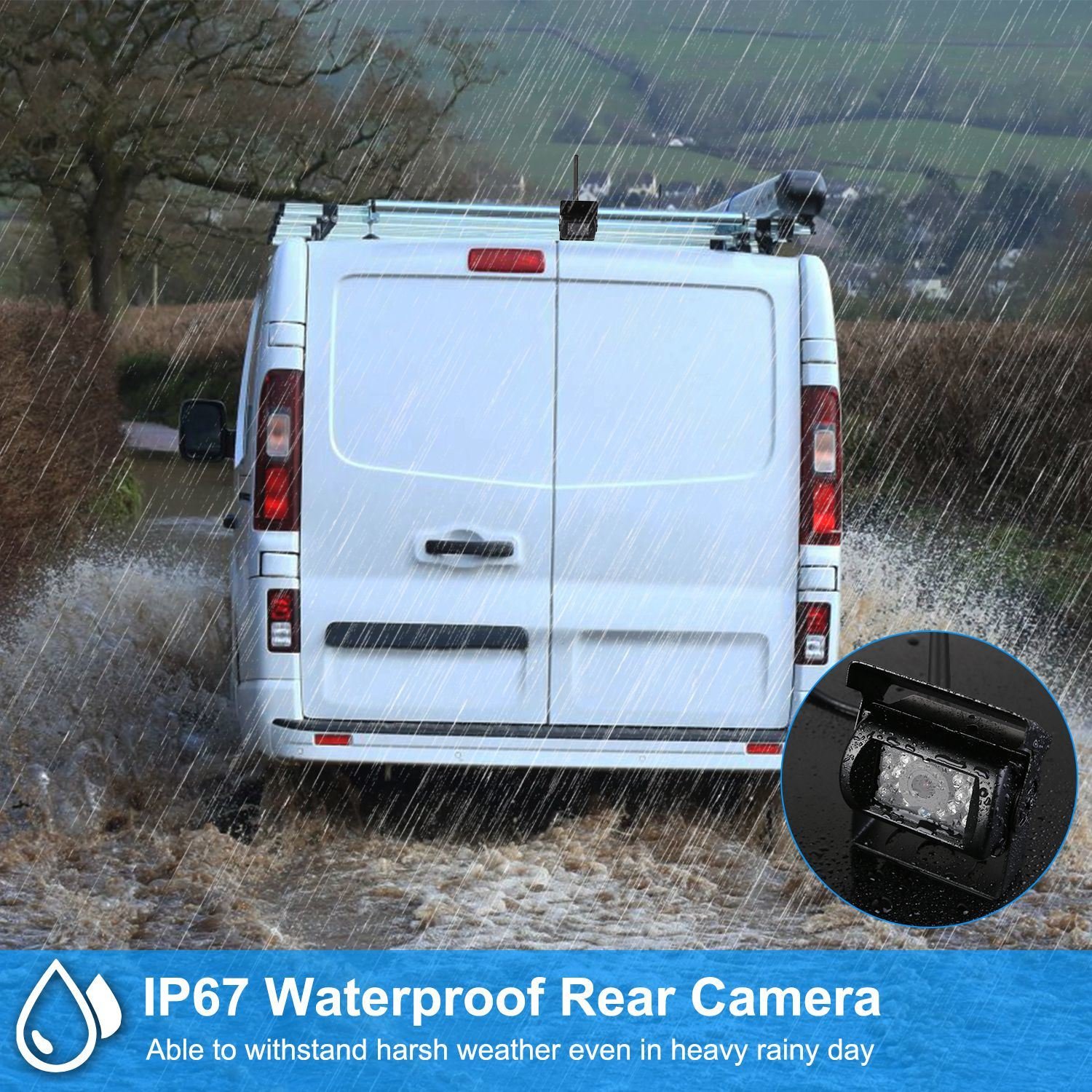

*IP67 Waterproof*:Made of heavy duty metal with rain-proof cover; this reverse camera is IP67 waterproof; able to withstand harsh weather no matter in rainy or snowy day.

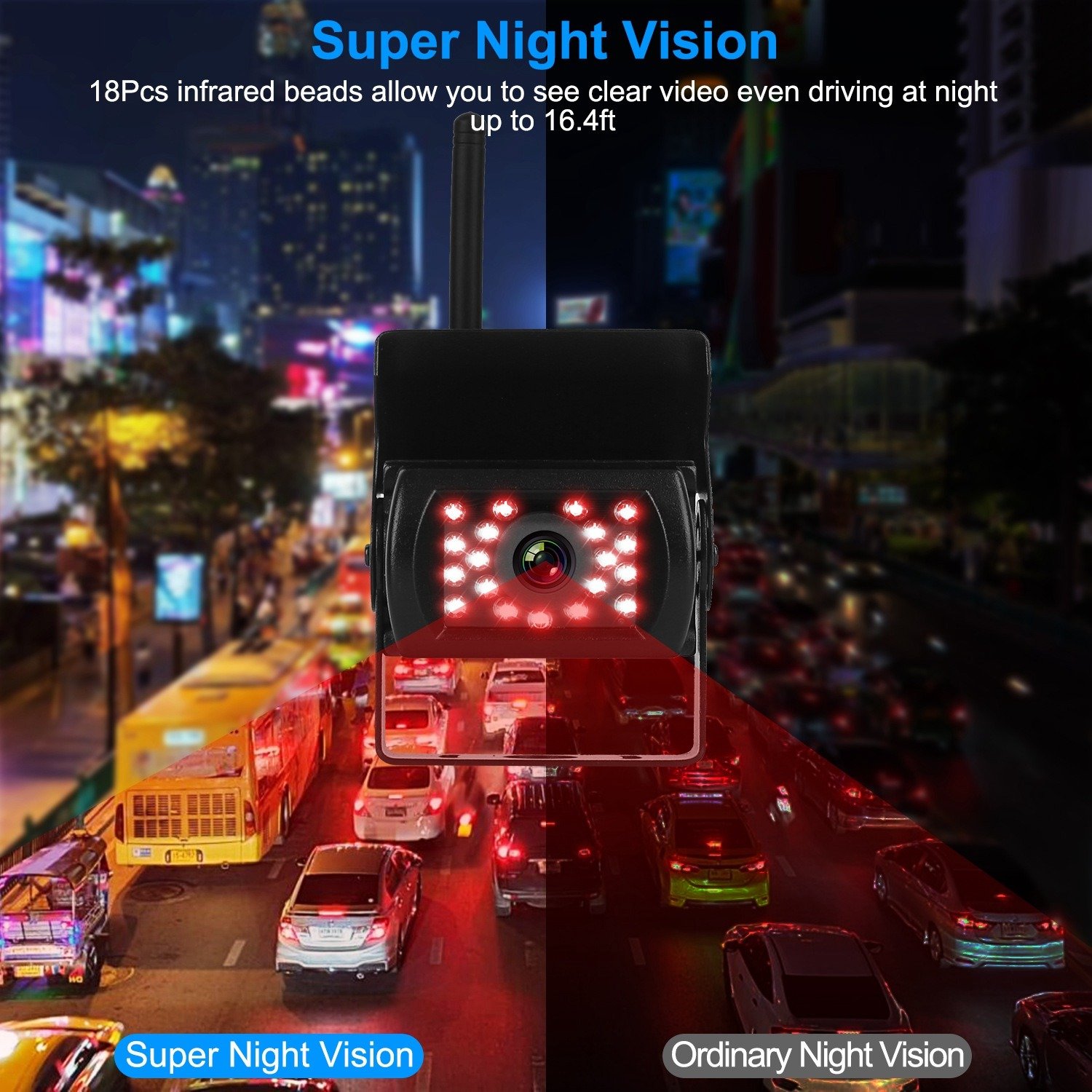

*Clear Night Vision*:Featured with night vision function with 18pcs infrared beads; allows you to see clear video even driving at night; ensuring safe backing up and parking.
*Wide Application*:Support voltage range from DC 12-35V power; works well with large vehicles; especially suit for Trucks; Van; RVs; Trailers; Bus; Car; Harvester; Pickup; Motor Home; Van; etc..

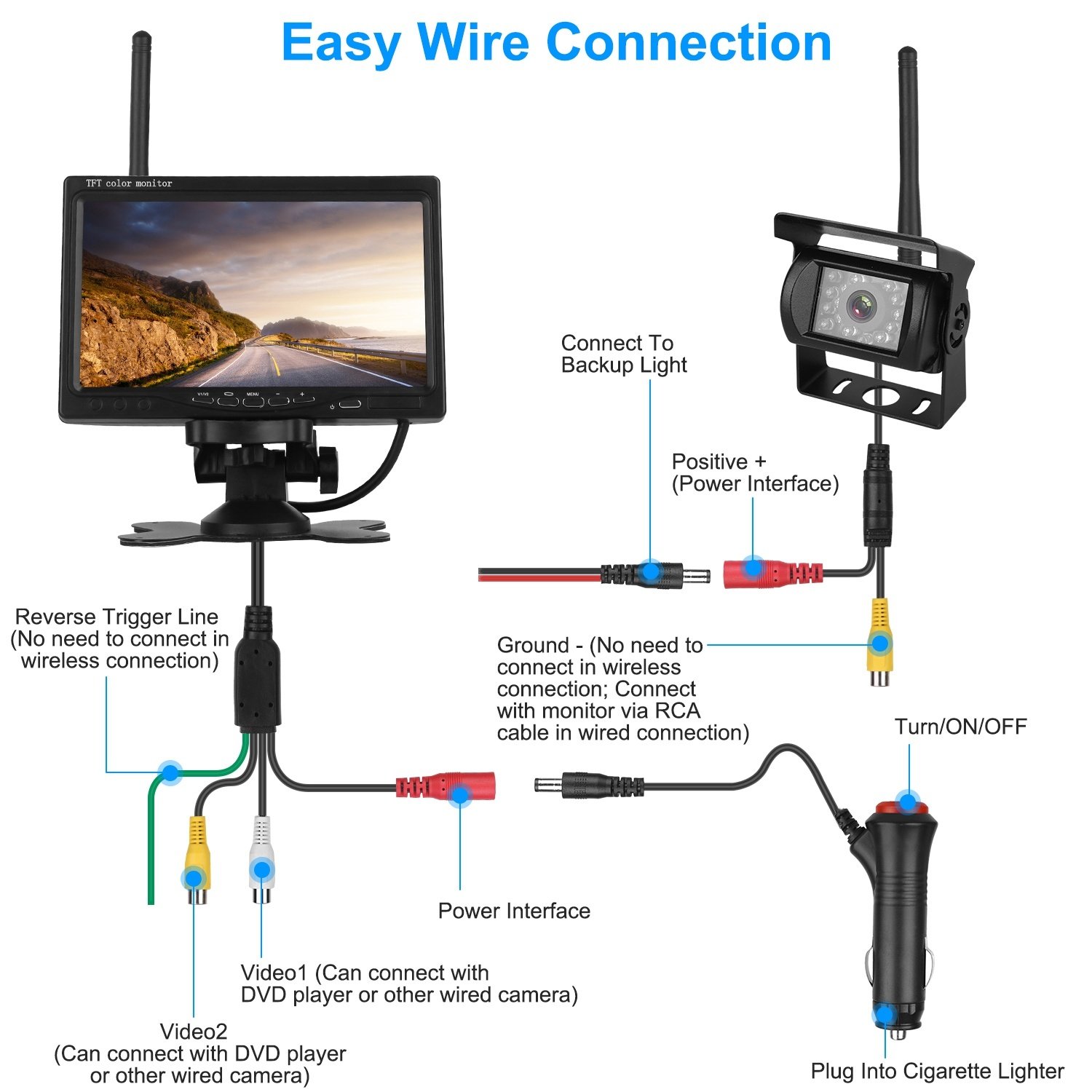

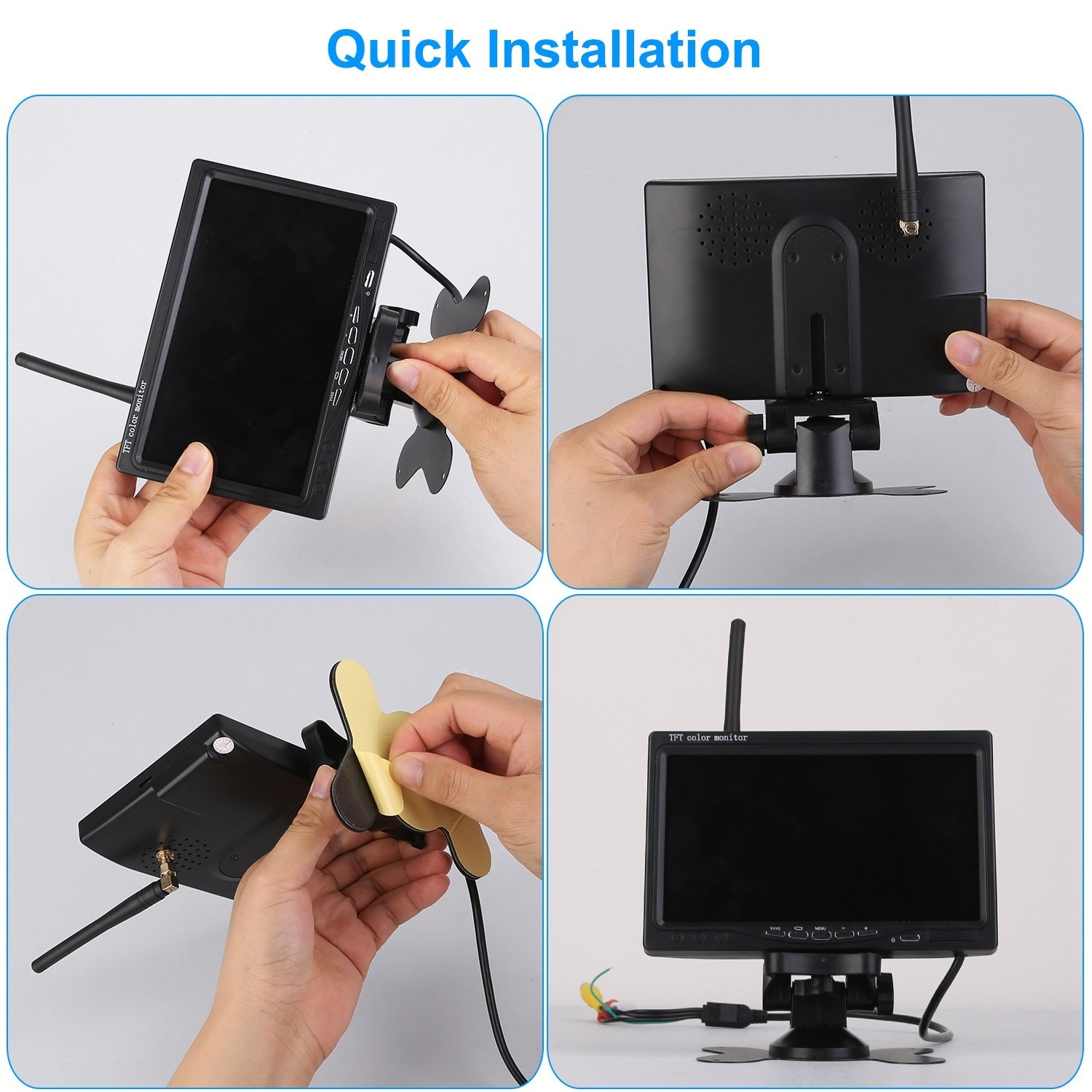

How To Install:
1. Just plug the red interface of the monitor to the cigarette lighter cable and plug to the power.(Green wire; yellow and white interface are not needed to connected.)
2. Connect the red interface of the reverse camera to the power of reversing light or use other power to supply the power.
3. The yellow and white interface of the monitor can be connected to another wired camera(V1 Signal;RCA cable is needed) or connected to DVD player(V1 Signal)

How To Connect Wireless Reverse Camera:
1. Connect power cable and ensure the monitor and camera turns on.

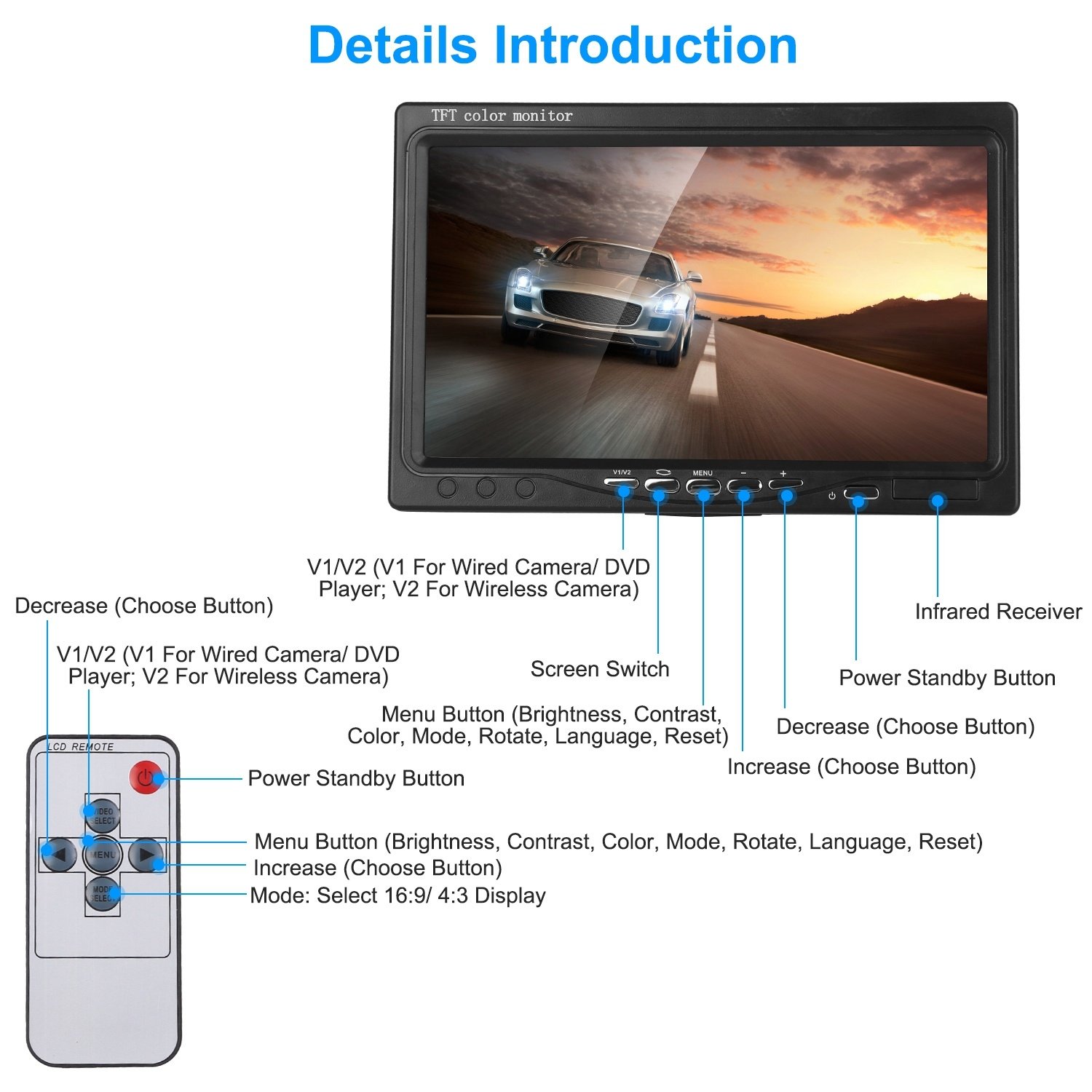

2. Press the V1/V2 button on the monitor to choose V2; then choose the corresponding frequency(Please look at the back of the reverse camera:For example:If 'CH 2370'; then choose '2370') and finished.

Note:
Power conversion cables(One for monitor;one for camera) can be used when the red interface(For power connection) can’t be used and plugged; and connect the power with wire directly.

*Specifications*:

​ Product Type: Wireless Backup Camera System
Color: Black
Material: ABS; Metal
Monitor: Built-in 2.4GHz Wireless Receiver
Camera: Built-in 2.4GHz Wireless Transmitter
Night Vision Distance: About 5m/16.4ft
Wireless Distance: 30m/98.42ft Without Obstacles
Monitor Voltage: DC 12-35V
Power: 5W
Screen: 7In TFT Color Screen (15.2x8.5cm/6x3.35in); 16:9
Display Format: 16: 9; 4: 3 Switchable
Monitor Resolution: 800x480
Monitor Signal System: PAL/ NTSC Auto Switchable
Monitor Operation: Button Control; Remote Control
Monitor Work Temperature: -10~+40℃/ 14~+104℉
Monitor Storage Temperature: -25℃~+80℃/ -13~+176℉
Rear Camera Voltage: 12-24V
Rear Camera Viewing Angle: 110°
Rear Camera Signal System: PAL
Rear Camera Consumption Current: ≤300mA
Rear Camera Min. Illumination: 1.0Lux/F1.2 0.2Lux/F1.2
Rear Camera Infrared Light: 18Pcs Beads
Rear Camera Work Temperature & Humidity: -20~+70℃/ -4~+158℉; RH95%MAX
Rear Camera Storage Temperature & Humidity: -40~+85℃/ -40~185℉; RH95%MAX
Rear Camera Waterproof Rate: IP67
Cigarette Lighter Power Cable Length: 2.35m/92.52in/7.7ft
Monitor Cable Length: 48cm/18.9in
Rear Camera Cable Length: 55cm/21.65in
Rear Camera Size & Weight: 7.5x7.5x7.5cm/2.95x2.95x2.95in; 242g/0.53lbs
Monitor Thickness: 2.4cm/0.94in
Monitor Size & Weight (No Frame): 17x10.5x3cm/6.69x4.13x1.18in; 250g/0.55lbs
Monitor Size & Weight (With Frame): 17.8x10.5x6cm/7x4.13x2.36in; 281.5g/0.62lbs
Package Size: 21x14.5x8.5cm/8.27x5.71x3.35in
Package Weight: 860g/1.9lbs

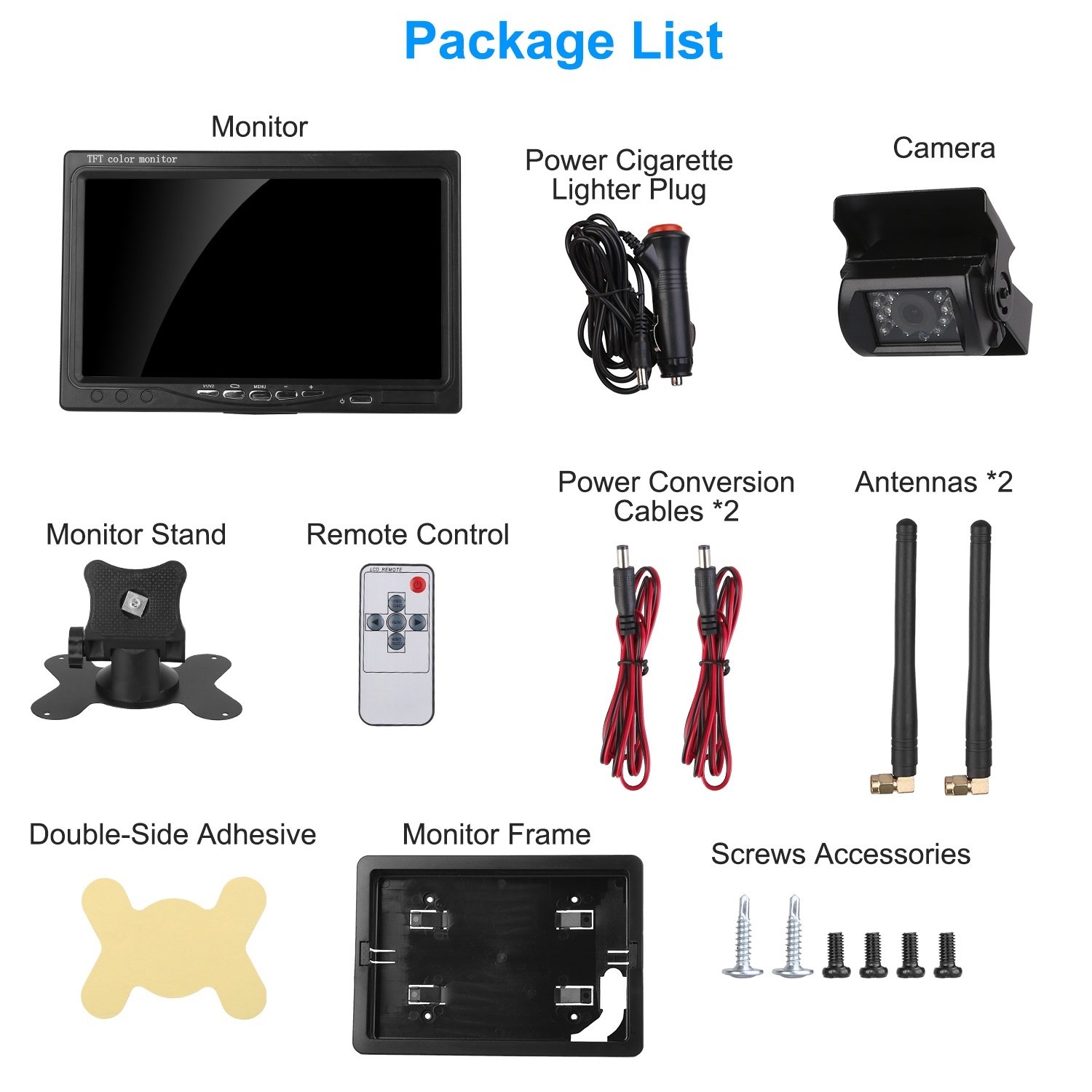

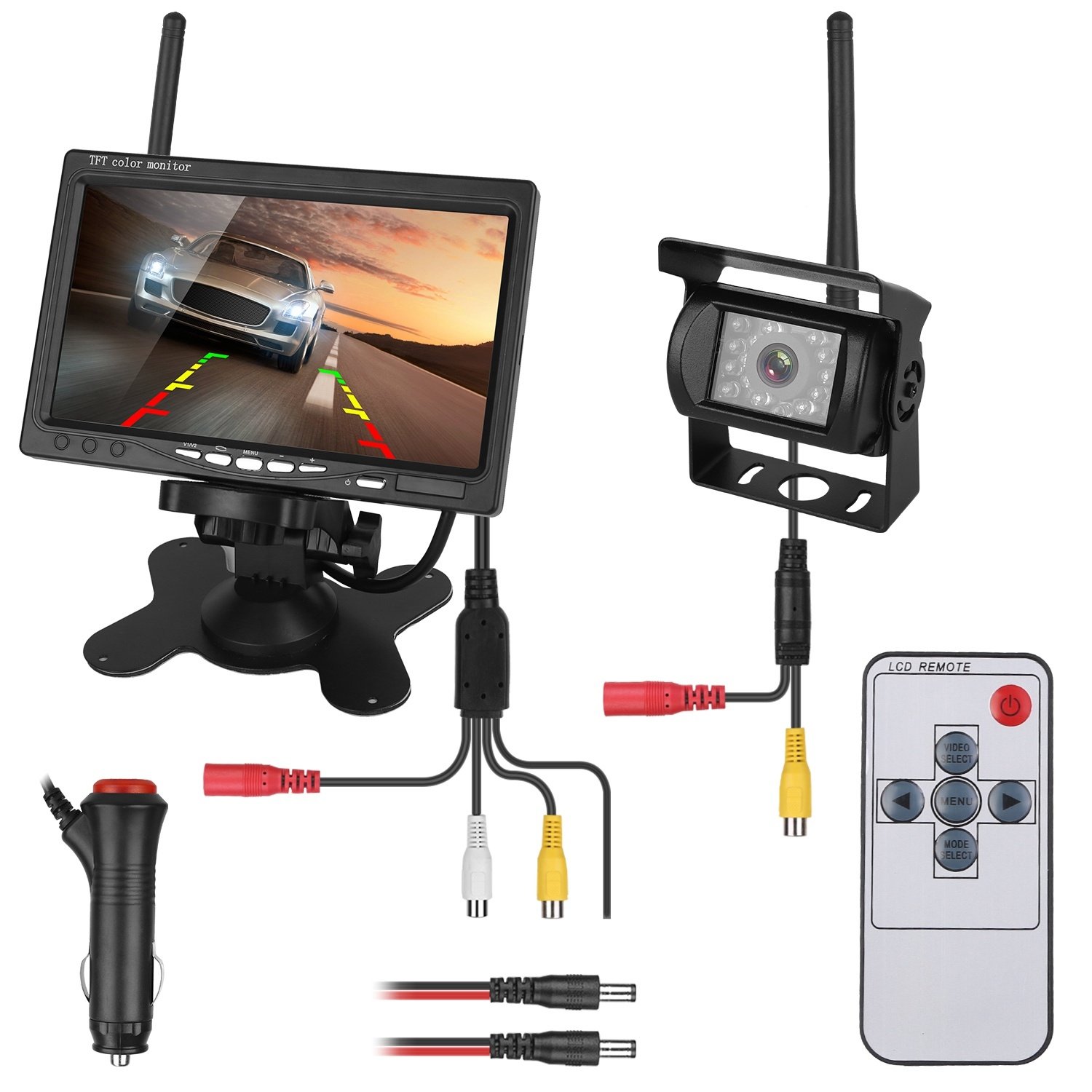

*Package Lists*:

1 x Monitor
1 x Rear Camera
1 x Cigarette Lighter Power Cable
1 x Monitor Top Cover
1 x Monitor Bracket
2 x Power Conversion Cables
1 x Double-Side Adhesive
1Bag x Screws
1 x User Manual
